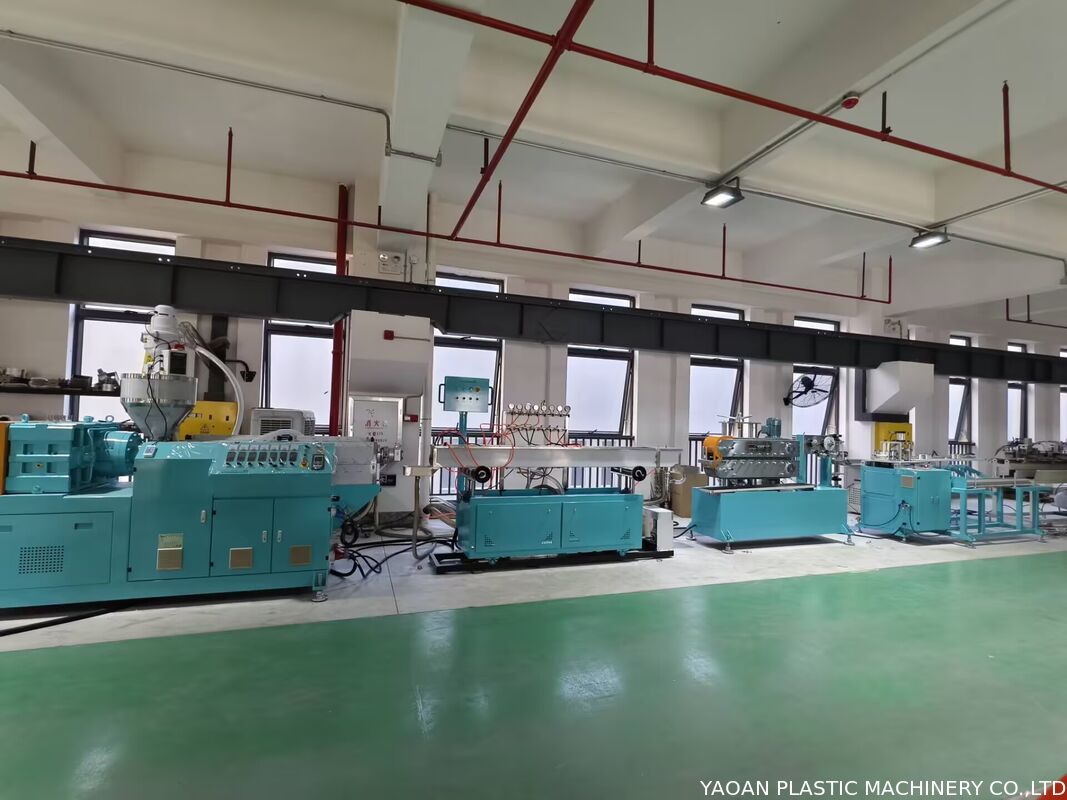

YAOAN Plastic Curtain Track Extrusion Production Line

General Introduction

Complete Line Configuration

1. Raw Material Feeding System

2. Main Extruder Unit

Option A: SJSZ65/132 Conical Twin Screw Extruder (for PVC/Nano PVC curtain track)

• Screw and barrel adopt 38CrMoAlA alloy steel with overall nitriding treatment, featuring high wear resistance and anti-corrosion performance, specially optimized screw groove design for direct extrusion of PVC powder without pre-pelletizing.
• Equipped with ABB frequency converter and Omron segmented PID temperature control system, compound cooling of air cooling & oil cooling prevents PVC thermal decomposition, temperature control accuracy within ±1℃. Main driving power is 37kW for stable long-term non-stop production.
• Normal production speed under vacuum calibration: 10~15 m/min, maximum speed up to 32 m/min for thin lightweight curtain rails. Output ranges from 120kg/h to 180kg/h.

Option B: SJ55 Single Screw Extruder (for PP/ABS transparent curtain track)

• Screw L/D ratio is 30:1, 38CrMoAlA nitrided screw fits low to medium viscosity PP and high rigidity PC raw materials, realizing uniform plasticization without material scorch or surface speckle.
• Frequency speed regulation + precise multi-section temperature control adapts the narrow forming temperature range of PP and PC. Standard vacuum shaping speed:12~16 m/min; high-speed thin-wall production reaches 38 m/min, suitable for high-end transparent silent curtain rail manufacturing.

3. Vacuum Cooling & Calibration Table

4. Variable Frequency  Haul-off Machine

5. Fixed-length Cutting Machine

6. Finished Product Receiving Rack

Raw Material & Finished Product Specifications

Applicable Raw Materials

Available Curtain Track Types

1. Household decoration: ceiling-mounted single track, wall-mounted double/triple track, hidden recessed track, flexible curved bay window track;
2. Engineering-use: heavy-duty track for hotel, apartment and hospital partition curtain, matched auxiliary rail for motorized electric curtain;
3. Size range: inner groove width 8~32mm, wall thickness 0.6~2.2mm; optional one-die multi-cavity design to extrude 2~4 pieces of curtain track simultaneously to boost production efficiency.

Product Application of Finished Curtain Track

• Residential renovation: indoor window, balcony and bay window curtain sliding rail for household decoration;
• Commercial construction: supporting curtain rail for hotel, apartment, office building and hospital partition projects;
• Special accessories: inner curtain track for RV interior and various customized drapery accessories.

  Finished products comply with international common environmental standards like RoHS and REACH, satisfying global decoration industry quality demands.

Core Advantages of YAOAN Extrusion Line

1. Strong versatility: one production line can switch multiple raw materials and various track specifications by replacing die and calibration mold;
2. High automation: automatic feeding, synchronous traction, fixed-length cutting and optional online punching greatly reduce manual operation cost;
3. Stable product quality: optimized extrusion and vacuum shaping system guarantees precise dimension of curtain track, smooth sliding performance of assembled curtain gliders;
4. Wide market adaptability: finished curtain rails made by this line gain great popularity among domestic and overseas decoration manufacturers.
